Eurotech Channel Cleats
....LOW SMOKE, ZERO HALOGEN....

Increasing attention is being focused on safety in buildings and public places where the emissions of smoke & toxic fumes in fire conditions endangers life and causes irreparable damage to costly electronic installations.


Eurotech Cable Support Systems are manufactured from the most advanced materials to provide superb flame retardance together with extremely low emissions of toxic fumes and smoke.


The outstanding safety features and fire resistant qualities of Eurotech Channel Cleats are further enhanced by their lightweight, compact mechanical properties offering high impact strength.
Eurotech Channel Cleats are easily and quickly installed into standard 41mm support channel using standard hardware.
A reducing Ferrule is available to allow mounting of a single hole cleat with 6mm studs or screws.


Cleats E9, E10 and E11 have similar mounting hole centres and may be stacked, as may E12, E13 and E14

Cleats E9 to E14 can also be supplied in red (made to order only).

The Standard Channel Cleat product range is produced in Self Extinguishing, Flame Retardant material conforming to Underwriters Laboratory Specification UL94-V2.

The material does not contain Halogen or Phosphorous, nor does it contain Antimony.
Consequently the formation of Halogen or Phosphorous – containing components as a result of thermal de-composition is impossible.

Eurotech Channel Cleats are also available in material conforming to Underwriters Laboratory Specification UL94-V0 (made to order only) and recognised within the “Code of Practice” of major Underground Transit Authorities with regard to emission of smoke and toxic fumes.





EUROTECH CLEAT SELECTION GUIDE FOR 600/100 VOLT POLYMERIC INSULATED CABLES

(Approximate guide only- please check cable manufacturers' literature)


CONDUCTOR
2
AREA mm
STRANDED COPPER CONDUCTOR
STEEL WIRE ARMOURED (* =AWA)



6491X
PVC



6181XY
XLPE/PVC

SINGLE
CORE*
TWO
CORE
THREE
CORE
FOUR
CORE
1.5
E0
E0
E0

2.5
E0
E1
E1

4.0
E1
E1
E2

6.0
E2
E2
E2

10.0
E3
E3
E4

16.0
E3
E4
E4
E00
25.0
E4
E5
E5
E00
E00
35.0
E5
E5
E5
E00
E0
50.0
E2
E4
E5
E6
E0
E1
70.0
E3
E5
E6
E6
E0
E1
95.0
E3
E6
E6
E7
E1
E2
120.0
E5
E6
E7
E8
E2
E3
150.0
E5
E7
E8
E9
E2
E3
185.0
E5
E8
E8
E10
E3
E4
240.0
E5
E8
E10
E11
E4
E5
300.0
E6
E9
E11
E12
E5
E5
400.0
E7
E10
E12
E14
E5
E6
500.0
E7
E6
E6
630.0
E8
E6
E7
ALL CABLES UP TO 300 x 4 CORE X LP6/SWA/PVC
ALL 9491X & 6491B CABLES

EUROTECH CHANNEL CLEATS
G
R
O
U
P
1
PART NUMBER
CABLE DIAMETER
CLEAT DIMENSIONS
APPROX WT
GRMS
MINIMUM
MAXIMUM
A
B
C
E00
8.5mm
11.0mm
43mm
47mm
33mm
34
E0
11mm
13.5mm
43mm
51mm
35mm
37
E1
13.5mm
16.0mm
43mm
54mm
38mm
42
E2
16.0mm
19.0mm
43mm
58mm
41mm
45
E3
19.0mm
22.0mm
43mm
60mm
44mm
50
E4
22.0mm
26.5mm
43mm
64mm
48mm
56
E5
26.5mm
32.0mm
43mm
70mm
54mm
62
E6
32.0mm
38.0mm
43mm
80mm
60mm
79
E7
38.0mm
44.0mm
43mm
85mm
66mm
83
E8
44.0mm
50.0mm
43mm
88mm
71mm
87

G
R
O
U
P
2
PART NUMBER
CABLE DIAMETER
CLEAT DIMENSIONS
APPROX WT
GRMS
MINIMUM
MAXIMUM
A
B
C
E9
50.0mm
54.5mm
60mm
97mm
67mm
121
E10
54.5mm
59.0mm
60mm
97mm
72mm
131
E11
59.0mm
64.0mm
60mm
97mm
76mm
145

G
R
O
U
P
3
PART NUMBER
CABLE DIAMETER
CLEAT DIMENSIONS
APPROX WT
GRMS
MINIMUM
MAXIMUM
A
B
C
E12
64.0mm
68.0mm
60mm
116mm
80mm
166
E13
68.0mm
74.0mm
60mm
116mm
90mm
168
E14
74.0mm
81.omm
60mm
116mm
90mm
188

EF1
REDUCING FERRULE 10mm/6mm
TECHNICAL DATA
OPERATING TEMP. RANGE - 10° TO 120°C
LIMITED OXYGEN INDEX (LOI)   V2  25%    VO  36%
HALOGEN CONTENT <0.01%
PHOSPHOROUS CONTENT <0.01%
FLAME RETARDANT TO UL94 -V2 OR V0
COLOUR - BLACK UV RESISTANT

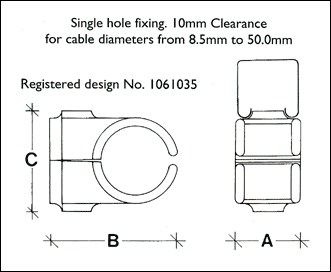

Single hole cleat
Double hole cleat
CHEMICAL RESISTANCE -RESISTANT TO MOST KNOWN CHEMICALS
